A tensioned membrane parking canopy is a lightweight shelter system where a flexible membrane (PVDF/PTEF) is prestressed and supported by edge members, cables and/or masts to form a stable tensile surface. It provides sun-shade, rain protection, fast construction and architectural expressiveness for office, commercial and residential parking areas.

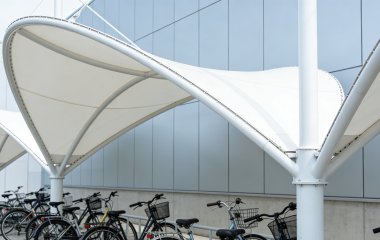

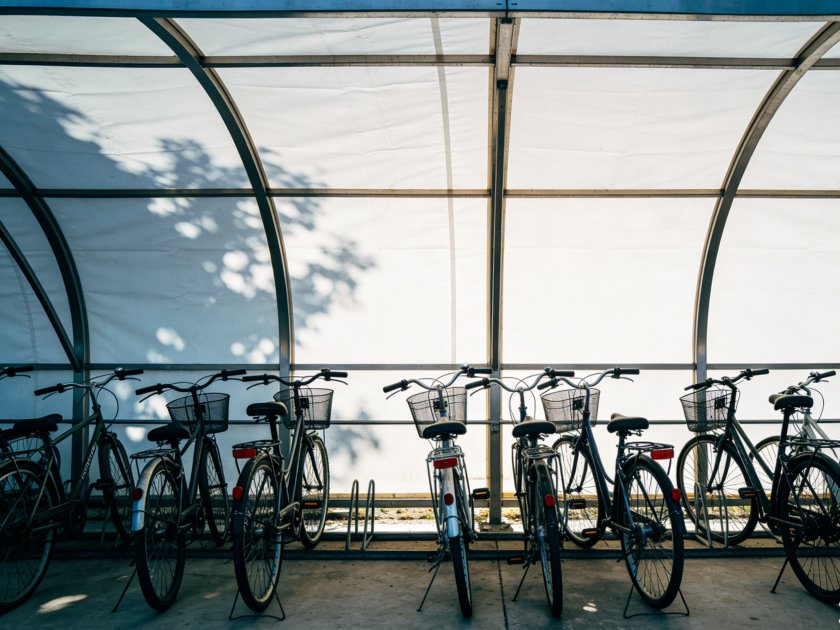

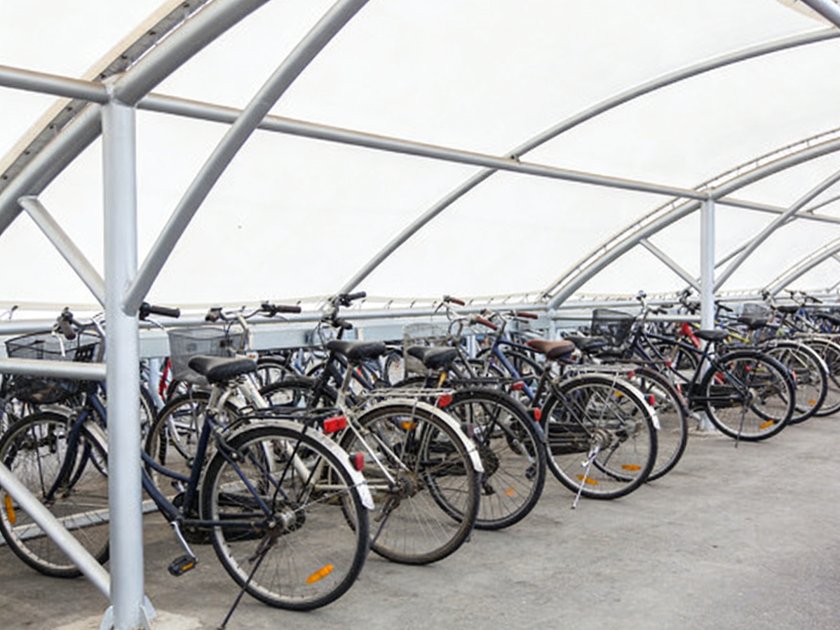

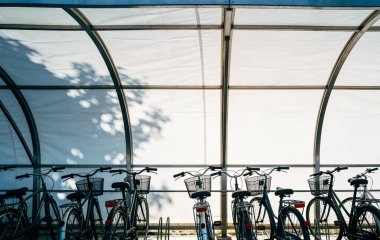

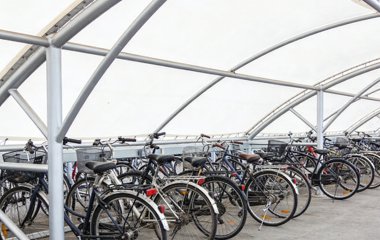

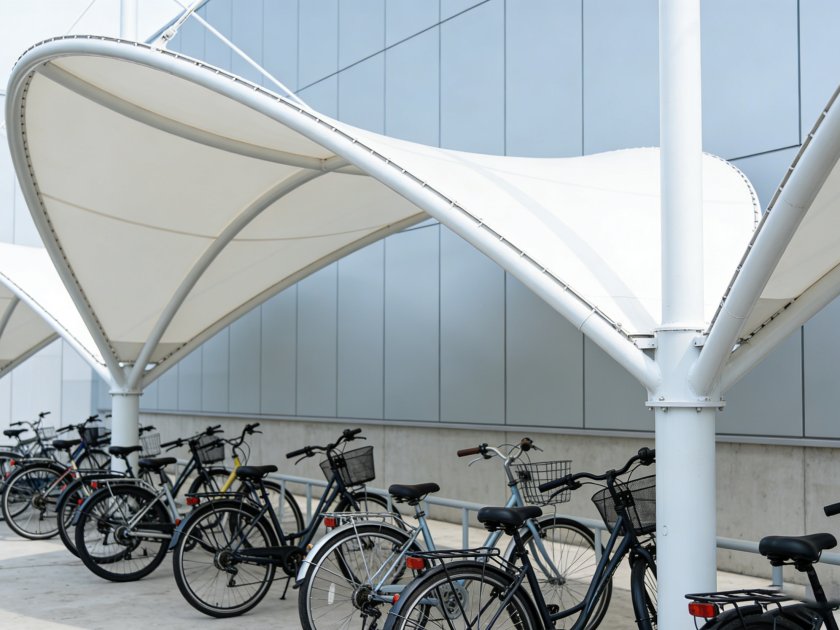

E-Bike & Bicycle Shelter Membrane Structure is a modern lightweight parking facility that forms a stable curved surface by applying pre-tension to high-performance membrane materials with steel structures and cable systems. It integrates sun shading, rain protection, space optimization, artistic aesthetics and durability, widely used in commercial real estate, residential areas, industrial parks, cultural tourism scenic spots, municipal parking lots and new energy charging pile supporting facilities.
Application: Commercial parking lots, high-end residential areas, industrial parks, scenic spots, municipal parking areas, charging pile canopies
Structure Types: Tensioned, Frame-Supported, Cantilever, Umbrella/Cone, Hypar
Core System: Membrane surface, steel support structure, cable system, anchor foundation
| NAME | High Strength E-Bike & Bicycle Shelter Membrane Structure |
| SIZE | Customized |
| AREA | Customized |
| MATERIAL | PVDF/PTEF/ETFE |
| LOCATION | Worldwide |
| DURATION | More Than 20 Years |
| TEMPRATURE | -30~+70 Degree |
| WIND RESISTANCE | >127KM/ H |
| FIRE RATAING | A |
| TRANSLUCENCY | 12%- 14% |
| TEAR STRENGTH (W/F) | 400/350N |
Typical Materials
PTFE-coated fiberglass (Teflon-coated glass fibre)
Excellent thermal resistance (continuous service up to ~+260°C), UV and weather resistance, low surface energy for “self-cleaning”, long service life and high dimensional stability. Typical tensile strengths vary by product but can reach several hundred to over one thousand N/5cm depending on weight and weave.
PVC/PVDF-coated polyester (often with PVDF finish)
Economical, colourable/printable, good waterproofing and fire-retardant formulations; PVDF topcoat significantly improves UV and long-term durability. Typical design life 15–25 years under normal exposure when correctly detailed and maintained.
ETFE foil (single layer or cushion)
Very light, high transparency for daylighting — used when visual/lighting performance is required.
A tensioned membrane parking canopy is a lightweight shelter system where a flexible membrane (PVDF/PTEF) is prestressed and supported by edge members, cables and/or masts to form a stable tensile surface. It provides sun-shade, rain protection, fast construction and architectural expressiveness for office, commercial and residential parking areas.
