Key Technical Performance & Specifications:
Airflow Capacity: 990 – 226,500 m³/h
Total Pressure: 180 – 3,350 Pa
Drive Configuration: Direct-drive (Type A), Belt-driven (Type C/V-belt), Bearing Housing Arrangement (Type D/E)
Impeller Dynamic Balance Standard: ISO 1940 / AMCA 204 (Grade G2.5 / G4.0)
Aerodynamic Testing & Compliance: AMCA 210 / ISO 5801 test standard compliant
Motor Options: IE3 / IE4 Premium Efficiency Motors (50Hz / 60Hz, IP55 / IP65, Ex-d Anti-explosion optional)
Operating Temperature Range: Standard models up to 80°C; High-temperature customized options up to 500°C+

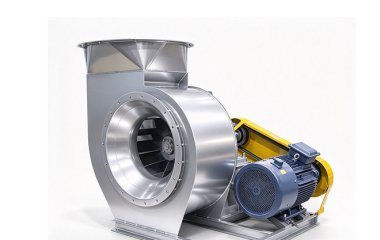

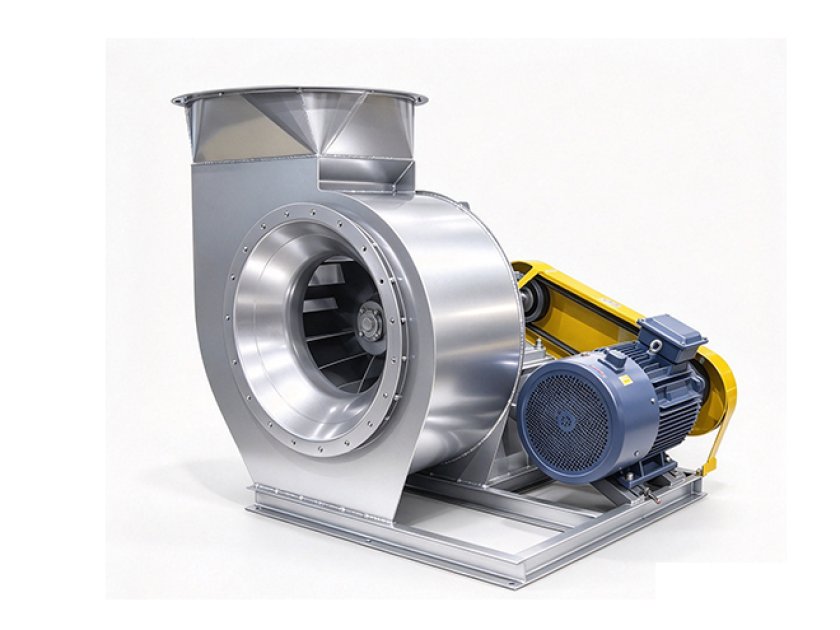

Designed for continuous, heavy-duty industrial duty, our single inlet backward curved centrifugal fan series engineered with a non-overloading horsepower curve, delivering high static efficiency and substantial energy savings compared to forward-curved alternatives. Operating across a medium-pressure performance envelope, this industrial centrifugal blower is a core air-moving solution for modern environmental engineering, HVAC ventilation, and process air systems.
Each fan system is built around a heavy-gauge welded steel volute casing and a precision-engineered backward-inclined impeller. By converting rotational kinetic energy into fluid pressure through optimized air foil geometries, the impeller generates low-turbulence airflow while reducing overall noise levels.
To ensure long-term mechanical reliability under demanding industrial conditions, every rotating assembly undergoes strict dynamic balancing in accordance with ISO 1940 (AMCA 204) standards prior to factory dispatch.
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
As a fundamental component in industrial air pollution control and ventilation infrastructure, our backward-curved centrifugal exhaust fans are deployed across diverse sectors:
Air Pollution Control & Dust Collection Systems: Serves as the primary draft source for baghouse dust collectors, cyclone separators, and wet scrubbers.
Industrial Furnace & Boiler Systems: Handles combustion air supply, forced draft (FD), and induced draft (ID) air circulating in kilns, ovens, and thermal processing equipment.
Industrial Exhaust & Material Transport: Efficiently extracts flue gas, chemical fumes, oil mist, and non-fibrous dust particles in metallurgical, chemical, and cement plants.
HVAC & Commercial Facility Ventilation: Provides reliable supply and return air for large-scale warehouse ventilation, underground parking exhaust, and cleanroom pressurized systems.
Our medium-pressure centrifugal fans are manufactured with modular structural components to allow seamless field integration and straightforward maintenance:
Aerodynamic Inlet Cone (Collector): Smoothly accelerates incoming air into the impeller throat to minimize inlet losses and turbulence.
Robust Volute Casing: Fabricated from Q235/Q345 carbon steel, SS304/SS316 stainless steel, or coated with anti-corrosion epoxy, designed according to GB/T 1236 (equivalent to ISO 5801).
Heavy-Duty Shaft & Bearing Assembly: Premium pillow block or monolithic bearing housings equipped with oil/grease lubrication, labyrinth seals, and temperature monitoring ports for 24/7 continuous operation.
Flexible Drive Configurations: Choice between direct-coupled drives for maximum transmission efficiency or belt/pulley drives for versatile speed adjustment.
