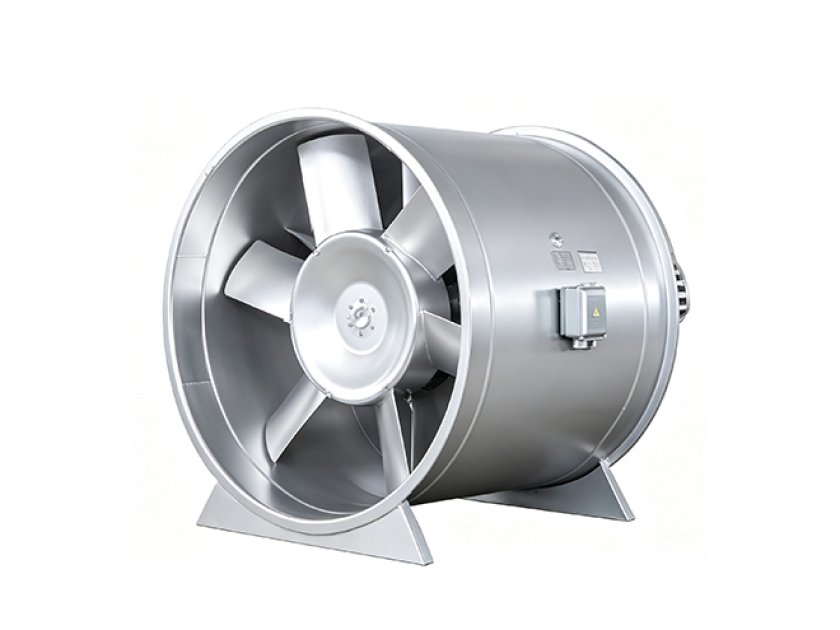

Axial Flow Fire Exhaust Fan/ Axial Smoke Exhaust Fan

Introduction:

Airflow: 466–116,520 m³/h

Power: 1.1–55 kW

Speed: 720–2,900 r/min

Static Pressure: 50- 1,905 Pa

Noise Level: 70–100 dB(A)

Operating Temperature:

-20°C to +60°C (continuous operation)

High-Temperature Resistance:

100°C (20 hours of continuous operation),

300°C (60 minutes of continuous operation)

Humidity: <90%

Power Supply:

Three-phase 380V–415V / 50 Hz

Inquiry Now Add To Cart

Product Details

The Axial Smoke Exhaust Fan features a specialized impeller constructed with meridional-acceleration tapered twisted blades welded onto the hub. The air inlet incorporates a streamlined trumpet-shaped silencer integrated seamlessly into the casing. Equipped with internal guide vanes, the unit delivers superior airflow distribution and stable static pressure performance, representing an advanced hybrid fan technology bridging axial and centrifugal blower designs.Powered by a high-temperature resistant motor, the fan can operate continuously for over 60 minutes at 280℃ during fire smoke emergency duty, and run non-stop for over 20 hours at 100℃ without mechanical or electrical degradation, making it ideal for dual-duty application (general ventilation and emergency smoke exhaust). Single-speed units are available in 14 standard impeller diameters ranging from 250 to 1,000 mm.This fan series is widely deployed in high-rise buildings, industrial and mining enterprises, hotels, restaurants, museums, gymnasiums, and underground basements. It is exceptionally well-suited for inline duct pressurization, fresh air supply, smoke extraction, and general ventilation across high-rise and commercial architecture.

Axial Smoke Exhaust Fan Dimensions and Installation Specifications

No	D1	D2	D3	2P				4R 10P)				6P				8P				N1	N2	n-a	φb	H
No	D1	D2	D3	L	L1	M1	M2	L	L1	M1	M2	L	L1	M1	M2	L	L1	M1	M2	N1	N2	n-a	φb	H
2.5	φ282	φ311	φ352	600	450	461	425	600	450	461	425	600	450	461	425					200	150	8-φ8.5	8.5	200
3	φ338	φ367	φ408	630	450	486	450	630	450	486	450	630	450	486	450					220	170	8-φ8.5	8.5	235
3.5	φ394	φ428	φ469	750	540	594	550	660	450	519	475	660	450	519	475					300	240	8-φ11	11	260
4	φ450	φ486	φ530	880	640	694	650	690	450	544	500	690	450	544	500					300	240	8-Φ11	11	290
4.5	φ506	φ547	φ586	920	650	719	675	770	500	594	550	720	450	569	525					400	320	12-φ11	13	325
5	φ563	φ604	φ643	1050	750	794	750	850	550	669	625	800	500	619	575					400	320	12-φ11	13	355
5.5	φ619	φ665	φ703					870	540	677	625	870	540	677	625	870	540	677	625	500	400	12-φ11	16	390
6	φ675	φ721	φ759					1000	640	777	725	910	550	702	650	910	550	702	650	500	400	16-φ11	16	420
6.5	φ732	φ778	φ822					1030	640	812	750	940	550	737	675	940	550	737	675	600	480	16-Φ11	16	455
7	φ788	φ839	φ878					1170	750	912	850	1060	640	837	775	970	550	762	700	600	480	16-φ11	16	485
7.5	φ844	Φ895	φ944					1210	760	945	875	1070	620	845	775	1070	620	845	775	700	580	16-Φ13	16	520
8	φ900	φ951	①1000					1330	850	1045	975	1100	620	870	800	1100	620	870	800	700	580	16-Φ13	16	550
8.5	φ957	φ1013	φ1057					1370	860	1070	1000	1230	720	970	900	1130	620	895	825	700	580	16-φ13	16	580
9	φ1013	φ1069	φ1113					1440	900	1120	1050	1290	750	995	925	1290	750	995	925	700	580	20-φ13	16	615
9.5	φ1070	φ1126	φ1180					1570	1000	1220	1150	1320	750	1020	950	1320	750	1020	950	800	650	20-φ13	16	645
10	φ1125	φ1181	φ1245					1700	1100	1295	1225	1450	850	1120	1050	1350	750	1045	975	800	650	20-φ13	16	675
10.5	φ1180	φ1236	φ1300					1780	1150	1370	1300	1530	900	1170	1100	1530	900	1170	1100	900	750	20-φ13	19	705
11	φ1237	φ1303	φ1357					1860	1200	1420	1350	1560	900	1195	1125	1560	900	1195	1125	900	750	20-φ13	19	735
11.5	φ1294	φ1350	φ1418					1990	1300	1520	1450	1690	1000	1295	1225	1590	900	1220	1150	900	750	20-φ13	19	760
12	φ1350	φ1416	φ1474					2080	1360	1570	1500	1820	1100	1395	1325	1620	900	1245	1175	900	750	20-φ13	19	790
12.5	φ1406	φ1472	φ1530					2170	1420	1643	1575	1850	1100	1418	1350	1750	1000	1343	1275	1000	850	24-φ15	19	825
13	φ1462	φ1538	φ1592					1680	900	1293	1225	1930	1150	1468	1400	1780	1000	1368	1300	1000	850	24-φ15	19	855
13.5	φ1518	φ1596	φ1648					1760	950	1343	1275	2110	1300	1593	1525	1860	1050	1418	1350	1000	850	24-φ15	19	875
14	φ1574	φ1654	φ1704					1790	950	1368	1300	2190	1350	1668	1600	1940	1100	1468	1400	1100	950	24-φ15	19	915

Dimensions and Installation Specifications for Axial Smoke Exhaust Fan

No	D1	D2	D3	S1				S2				S3				N1	N2	n-Φa	φb	H
No	D1	D2	D3	L	L1	M1	M2	L	L1	M1	M2	L	L1	M1	M2	N1	N2	n-Φa	φb	H
4.5	φ506	φ547	φ586	920	650	719	675	770	500	594	550					400	320	12-Φ11	13	325
5	φ563	φ604	φ643	1160	860	894	850	850	550	669	625					400	320	12-11	13	355
5.5	φ619	φ665	φ703	870	540	677	625	870	540	677	625	950	620	752	700	500	400	12-11	16	390
6	φ675	φ721	φ759	1000	640	777	725	910	550	702	650	1110	750	852	800	500	400	16-Φ11	16	420
6.5	φ732	φ778	φ822	1140	750	887	825	1030	640	812	750	1170	780	912	850	600	480	16-φ11	16	455
7	φ788	φ839	φ878	1200	780	937	875	1060	640	837	775	1200	780	937	875	600	480	16-Φ11	16	485
7.5	φ844	φ895	φ944	1330	880	1045	975	1210	760	945	875	1330	880	1045	975	700	580	16-13	16	520
8	φ900	φ951	φ1000	1330	850	1045	975	1200	720	945	875	1380	900	1070	1000	700	580	16-13	16	550
8.5	φ957	φ1013	φ1057	1410	900	1095	1025	1370	860	1070	1000	1490	980	1145	1075	700	580	16-φ13	16	580
9	φ1013	φ1069	Φ1113	1540	1000	1195	1125	1390	850	1070	1000	1540	1000	1195	1125	700	580	20-φ13	16	615
9.5	φ1070	φ1126	φ1180	1670	1100	1270	1200	1420	850	1095	1025	1670	1100	1270	1200	800	650	20-φ13	16	645
10	φ1125	φ1181	φ1245	1750	1150	1345	1275	1500	900	1170	1100	1750	1150	1345	1275	800	650	20-φ13	16	675
10.5	φ1180	φ1236	φ1300	1830	1200	1395	1325	1530	900	1170	1100	1830	1200	1395	1325	900	750	20-φ13	19	705
11	φ1237	φ1303	φ1357	1980	1320	1495	1425	1560	900	1195	1125	1980	1320	1495	1425	900	750	20-Φ13	19	735
11.5	φ1294	φ1350	φ1418	2050	1360	1545	1475	1690	1000	1295	1225	2050	1360	1545	1475	900	750	20-φ13	19	760
12	φ1350	Φ1416	Φ1474	2170	1450	1645	1575	1820	1100	1395	1325	2170	1450	1645	1575	900	750	20-φ13	19	790
12.5	φ1406	φ1472	φ1530	2170	1420	1643	1575	1850	1100	1418	1350	2170	1420	1643	1575	1000	850	24-φ15	19	825
13	φ1462	φ1538	Φ1592	1930	1150	1468	1400									1000	850	24-Φ15	19	855
13.5	φ1518	Φ1596	Φ1648	2110	1300	1593	1525									1000	850	24-φ15	19	875
14	φ1574	φ1654	φ1704	2190	1350	1668	1600									1100	950	24-Φ15	19	915

Performance Specifications Table

No	Speed (r/min)	Airflow (m³/h)	Total Pressure (Pa)	Motor Model	Power (kw)	Noise dB(A)	Wight (kg)
2.5A	2900	2253	402	Y801-2	0.75	73	40
		2039	452
		1696	532
		1496	542
		1340	554
	1450	1126	100	Y801-4	0.55	61	40
		1019	113
		848	133
		748	135
		670	139
	960	746	44	Y802-6	0.55	52	40
		675	50
		561	58
		495	59
		444	61
3A	2900	3893	578	Y802-2	1.1	74	50
		3523	651
		2930	767
		2585	780
		2316	798
	1450	1946	145	Y801-4	0.55	61	50
		1762	163
		1465	192
		1293	195
		1158	200
	960	1289	63	Y802-6	0.55	52	50
		1166	71
		970	84
		856	85
		767	87
3.5A	2900	6181	787	Y90L-2	2.2	75	70
		5595	887
		4653	1044
		4104	1062
		3678	1086
	1450	3091	197	Y801-4	0.55	62	62
		2797	222
		2327	261
		2052	265
		1839	272
	960	2046	86	Y802-6	0.55	54	54
		1852	97
		1540	114
		1359	116
		1217	119

For additional specification sheets, please contact our sales team.

Quality Assurance

The casing, blades, and impeller hub are fabricated from premium Q235 hot-rolled steel plate, delivering exceptional structural strength and high corrosion resistance. All processed sheet metal surfaces are smooth and scratch-free, presenting a refined aesthetic finish. The protective coating features an outdoor-grade epoxy powder-coated baked finish in a standard grey color, engineered to prevent rusting during long-term outdoor exposure.

Why Choose us

Customized selection can be made based on project drawings, construction conditions, and the project’s overall ventilation requirements.
