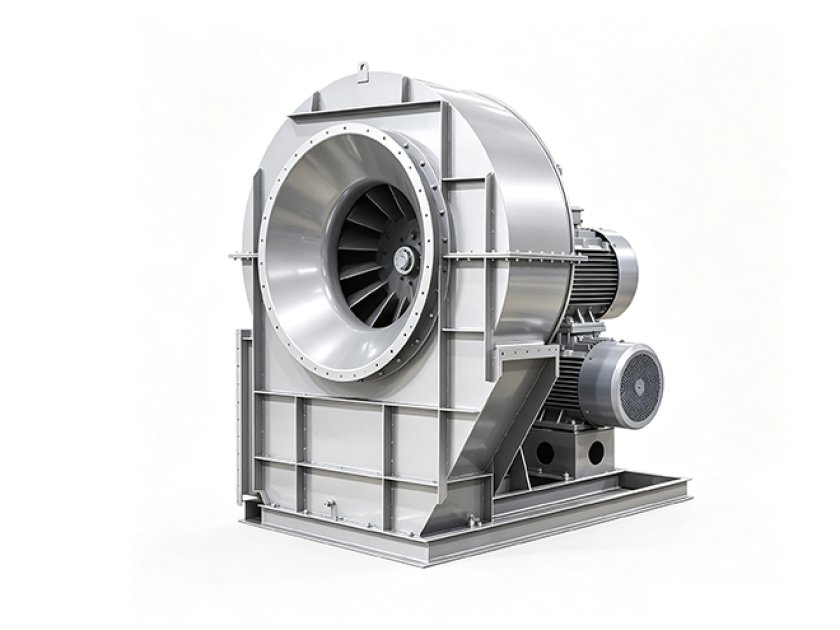

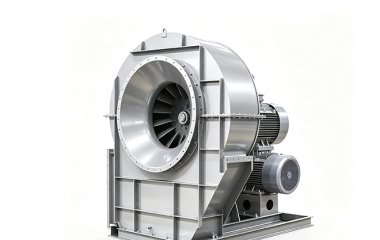

Engineered for continuous, heavy-duty industrial air handling, our Backward-Curved Single-Inlet Centrifugal Fan Series provides stable volumetric air delivery and medium-to-high static pressure across dust extraction loops, industrial furnaces, baghouse filtration systems, and environmental protection lines. Designed with a non-overloading backward-curved impeller, these fans maintain maximum fluid efficiency and lower power consumption under varying system resistance.
Engineered for continuous, heavy-duty industrial air handling, our Backward-Curved Single-Inlet Centrifugal Fan Series provides stable volumetric air delivery and medium-to-high static pressure across dust extraction loops, industrial furnaces, baghouse filtration systems, and environmental protection lines. Designed with a non-overloading backward-curved impeller, these fans maintain maximum fluid efficiency and lower power consumption under varying system resistance.
Manufactured in strict alignment with both Chinese national standards (GB/T 1236) and international benchmarks (ISO 5801 / AMCA 210), every fan unit undergoes factory dynamic balancing and vibration spectra inspection to ensure reliable 24/7 operation in harsh industrial environments.
Aerodynamic Performance Standards: Tested and rated in accordance with ISO 5801 and AMCA 210 / AMCA 300 standards (equivalent to Chinese GB/T 1236-2017 for industrial fan performance testing).
Dynamic Impeller Balancing: Impeller assemblies are dynamically balanced to ISO 1940 / ISO 21940 Grade G2.5 (GB/T 9239 compliant) to eliminate shaft vibration and extend bearing operational life.
Motor & Electrical Safety: Equipped with heavy-duty IEC-standard / GB 18613 IE3/IE4 high-efficiency motors, featuring IP55 weather protection, Class H/F insulation, and broad-voltage options (200V-480V, 50Hz/ 60Hz) for global grid compatibility.
Welding & Structural Integrity: Casing and structural skid welding meet ISO 5817 Level C / AWS D1.1 structural steel welding specifications.
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
Non-Overloading Backward-Curved Impeller: Constructed from high-tensile Q355B carbon steel (or optional 304/316L stainless steel). The backward-curved blade geometry resists particulate accumulation while preventing motor overload as system static pressure fluctuates.
Aerodynamic Volute Housing & Inlet Cone: Continuously welded heavy-gauge volute casing with a smooth spun inlet collector (convergent inlet cone) designed to minimize intake air turbulence and boundary-layer friction losses.
Drive Systems & Shafting Assemblies:
Type A (Direct Drive): Compact footprint with minimal power transmission loss.

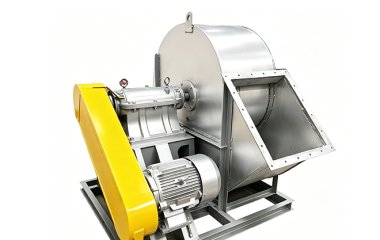

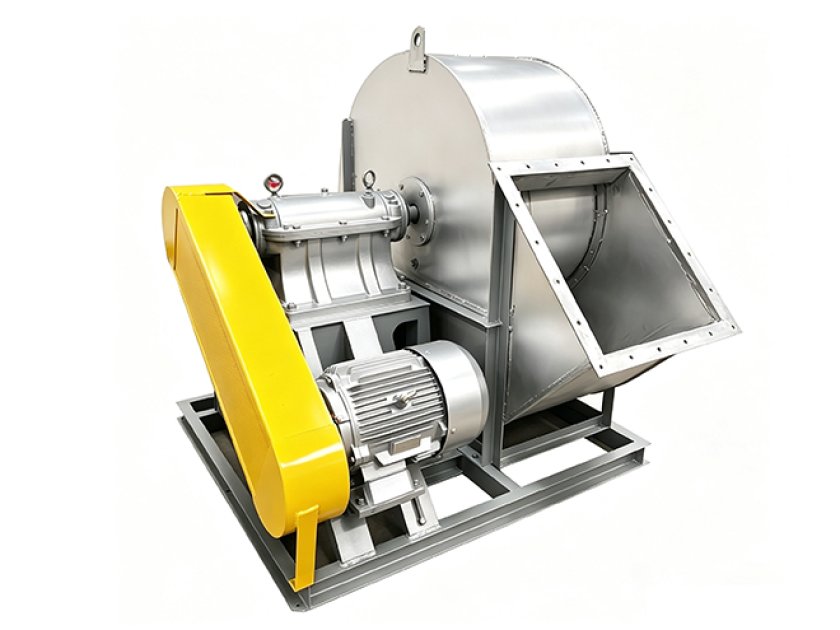

Type C / E (Belt Drive): Flexible speed modulation for fine-tuning system airflow and pressure.
Type D (Bearing Pedestal / Coupling Drive): Heavy-duty pillow block bearing housing with oil/grease lubrication, designed for elevated operating temperatures and high continuous loads.
Heavy-Duty Structural Skid & Base: Integrated carbon steel mounting base designed with pre-drilled anchor bolt holes and compatible with rubber or spring vibration isolators.
Airflow Capacity Range: 1,990 to 226,500 m³/h (1,170 to 133,300 CFM).
Total Pressure Output: 180 to 3,350 Pa (0.72 to 13.45 in. w.g.).
Operating Gas Temperature: Standard ambient up to 80℃; High-temperature structural upgrades available up to 250℃.
Installation Style: Rigid floor-mounted or elevated structural steel frame mounting.
To ensure zero damage during international ocean freight, all export fans undergo strict export preparation:
Factory Acceptance Testing (FAT): Every unit is subjected to a 30-minute no-load operational test, vibration spectrum analysis, and insulation resistance testing prior to dispatch. Factory Test Certificates are supplied with shipping documentation.
Export Packing: Rotors and machined shaft surfaces are coated with anti-rust oil. Small-to-medium fans are packed in IPPC ISPM-15 compliant fumigation-free wooden crates, while large volute casings are disassembled for optimized container loading (LCL/FCL).
Engineered for continuous, heavy-duty industrial air handling, our Backward-Curved Single-Inlet Centrifugal Fan Series provides stable volumetric air delivery and medium-to-high static pressure across dust extraction loops, industrial furnaces, baghouse filtration systems, and environmental protection lines. Designed with a non-overloading backward-curved impeller, these fans maintain maximum fluid efficiency and lower power consumption under varying system resistance.
