Engineered to prevent the spread of fire, toxic gases, and heavy smoke through HVAC air duct systems, our Fire Damper and Smoke Fire Damper Series provides critical passive fire compartmentation in commercial, residential, and industrial facilities. Designed for automatic thermal and electrical shutoff, these heavy-duty steel dampers act as structural barriers within wall, floor, and ceiling duct penetrations.

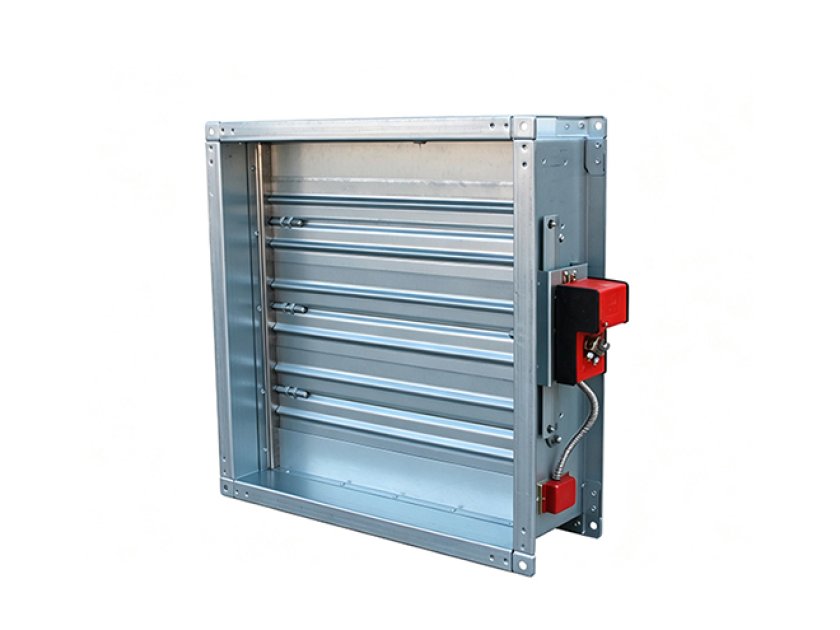

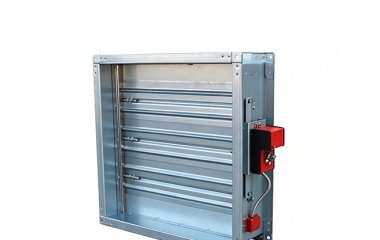

Fire Dampers & Smoke Fire Dampers (HVAC Duct Fire Protection)
Engineered to prevent the spread of fire, toxic gases, and heavy smoke through HVAC air duct systems, our Fire Damper and Smoke Fire Damper Series provides critical passive fire compartmentation in commercial, residential, and industrial facilities. Designed for automatic thermal and electrical shutoff, these heavy-duty steel dampers act as structural barriers within wall, floor, and ceiling duct penetrations.
Tested and compliant with GB/T 15930 (equivalent to international standards UL 555 and EN 1366-2), our dampers feature precision multi-blade assemblies, ultra-low air leakage rates, and dual manual/electrical reset actuators for reliable fire life-safety management.
70°C Fire Damper (Normally Open - Fire Isolation):
Operational Logic: Remains Normally Open (NO) for daily air ventilation. If duct air temperature reaches 70°C (158°F), the thermal fuse element activates, releasing the spring mechanism to close the damper blades instantly.
Dual Control & Feedback: Supports automatic closure via a 24V DC signal from the Fire Alarm Control Panel (FACP), as well as manual mechanical trip. Outputs a passive dry-contact feedback signal upon closure. Must be manually reset after activation.
280°C Smoke Fire Damper (Normally Closed / Open - Smoke Extraction):
Operational Logic: Configured for smoke extraction ducts. Closes automatically when exhaust air temperature exceeds 280°C (536°F) to isolate the fire zone once smoke control operations cease.
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
SEF solutions designed specifically to deliver optimal efficacy and safety
Heavy-Duty Galvanized / Stainless Steel Casing: Rigid frame construction engineered to withstand duct expansion and high thermal stress during structural fires.
Ultra-Low Air Leakage Rate:
Ambient Temperature Leakage: ≤ 500 m³/(m²·h) at a static pressure differential of 300 ± 15 Pa.
Fire-Resistance Period Leakage: ≤ 700 m³/(m²·h) under high-temperature testing at 300 ± 15 Pa static pressure.
Flexible Actuator Integration: Factory-fitted with spring-return electric actuators (24 V DC / 230 V AC) or manual mechanical fuselink assemblies.
Nominal Working Pressure: ≤300 Pa at ambient operating temperatures.
Applicable Media: Clean air, ventilation gases, and heavy combustion smoke.
Frame & Blade Material: Premium Galvanized Steel Sheet / Optional 304 or 316 Stainless Steel for corrosive environments.
Duct Connection Styles: Rectangular flange connection / Circular spigot fitting.
Control Electrical Specifications: 24V DC actuating current / Passive feedback contact.
Engineered to prevent the spread of fire, toxic gases, and heavy smoke through HVAC air duct systems, our Fire Damper and Smoke Fire Damper Series provides critical passive fire compartmentation in commercial, residential, and industrial facilities. Designed for automatic thermal and electrical shutoff, these heavy-duty steel dampers act as structural barriers within wall, floor, and ceiling duct penetrations.
