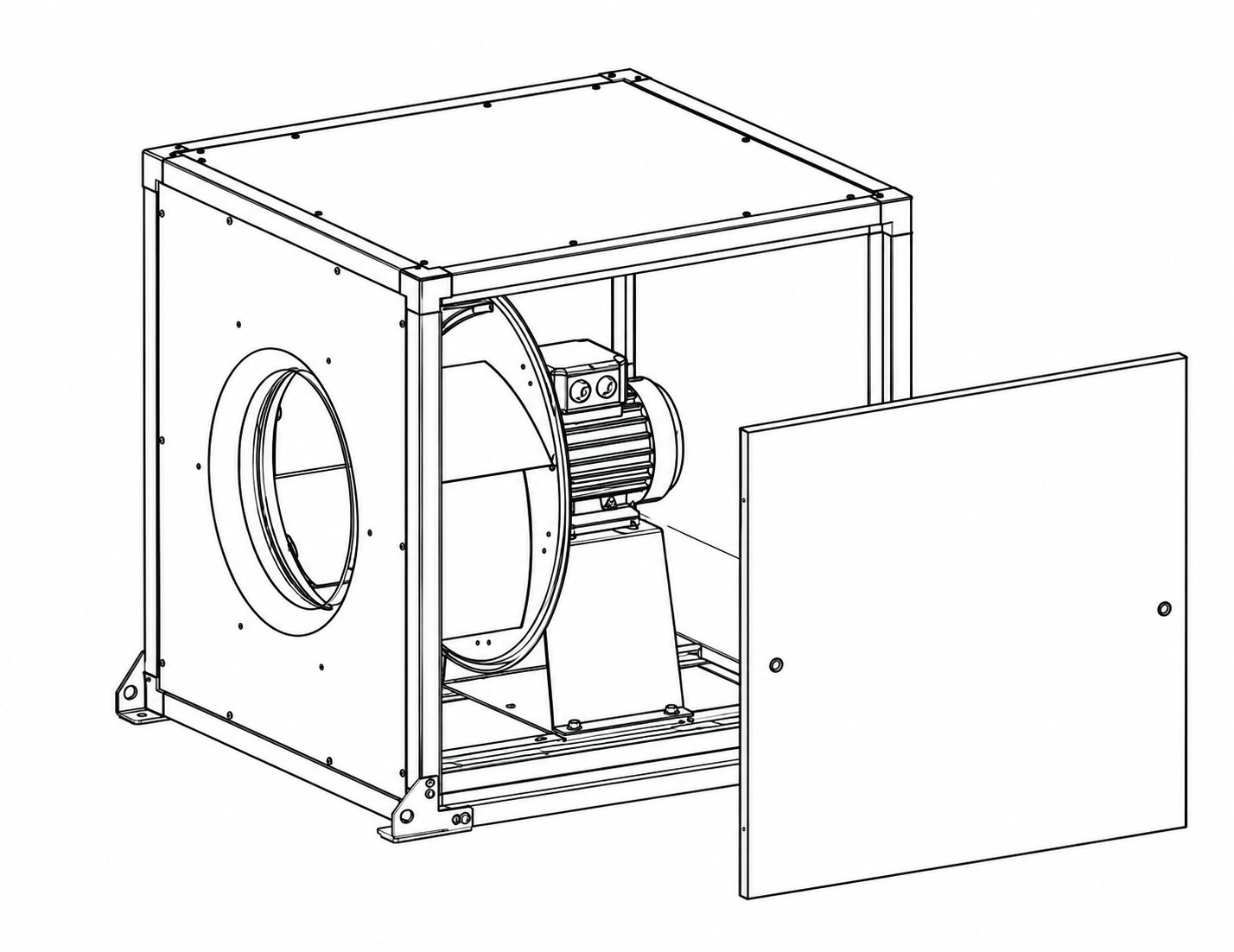

HTFC(DT)Ⅰ-Centrifugal Fan Box Specifications

The fans are available in twelve sizes ranging from 9''to 36'' in diameter, with airflow rates ranging from 1,650 to 85,000 m³/h and total pressure ranging from 180 to 1,000 Pa.

The fans are available in four models (I, II, III, IV). Models I and III are single-speed types, while models II and IV are dual-speed types equipped with dual-speed motors to enable two-speed operation.

The fans can also be equipped with variable-frequency motors and variable-frequency controllers for speed control; the recommended operating frequency range is 25 Hz to 50 Hz.

→More Configuration Details

Carlbie	RPM(r/min)	Airflow(m³/h)	Total Pressure (Pa)	Static Pressure (Pa)	Motor Model	Power(kw)	NoisedB(A)	Weight(kg)
9"	1600	2270	538	499	Y802-4	0.75	61	85
		2600	566	515	Y802-4	0.75	61	85
		3160	586	510	Y90S-4	1.1	63	89
		3530	578	483	Y90S-4	1.1	63	89
		3980	573	453	Y90S-4	1.1	63	89
	1450	2050	447	415	Y801-4	0.55	59	84
		2355	464	422	Y801-4	0.55	59	84
		2860	481	419	Y802-4	0.75	61	85
		3230	477	398	Y802-4	0.75	61	85
		3600	471	372	Y802-4	0.75	61	85
	1250	1770	333	309	Y801-4	0.55	56	84
		2030	345	314	Y801-4	0.55	56	84
		2465	358	312	Y801-4	0.55	56	84
		2785	354	295	Y801-4	0.55	56	84
		3150	352	277	Y801-4	0.55	56	84
10"	1600	2910	632	590	Y90S-4	1.1	63	110
		3330	664	609	Y90S-4	1.1	63	110
		4050	684	603	Y100L1-4	2.2	64	121
		4530	673	571	Y100L1-4	2.2	64	121
		5100	665	536	Y100L1-4	2.2	64	121
	1450	2630	525	491	Y802-4	0.75	60	105
		3020	544	499	Y802-4	0.75	60	105
		3670	562	495	Y90L-4	1.5	62	113
		4140	555	470	Y90L-4	1.5	62	113
		4620	546	440	Y90L-4	1.5	62	113
	1250	2270	391	365	Y802-4	0.75	57	105
		2600	405	371	Y802-4	0.75	57	105
		3160	419	369	Y90S-4	1.1	58	110
		3570	412	349	Y90S-4	1.1	58	110
		3980	406	327	Y90S-4	1.1	58	110
12"	1250	4550	631	579	Y90L-4	1.5	64	132
		5420	658	589	Y90L-4	1.5	64	132
		6330	686	585	Y100L2-4	3	65	143
		7150	683	554	Y100L2-4	3	65	143
		7970	680	520	Y100L2-4	3	65	143
	1100	4000	488	448	Y90L-4	1.5	61	132
		4587	509	456	Y90L-4	1.5	61	132
		5570	531	453	Y100L1-4	2.2	62	140
		6290	528	428	Y100L1-4	2.2	62	140
		7010	526	402	Y100L1-4	2.2	62	140
	1000	3630	403	370	Y90S-4	1.1	60	129
		4165	421	377	Y90S-4	1.1	60	129
		5070	439	374	Y90S-4	1.1	60	129
		5720	437	354	Y90S-4	1.1	60	129
		6375	435	332	Y90S-4	1.1	60	129
15"	960	7150	622	551	Y100L2-4	3	65	189
		8185	654	561	Y100L2-4	3	65	189
		9950	695	557	Y112M-4	4	66	195
		11240	701	526	Y112M-4	4	66	195
		12530	712	494	Y112M-4	4	66	195
	900	6700	545	483	Y100L1-4	2.2	64	186
		7670	575	493	Y100L1-4	2.2	64	186
		9330	610	489	Y100L2-4	3	65	189
		10370	614	465	Y100L2-4	3	65	189
		11750	627	435	Y100L2-4	3	65	189
	800	5950	431	382	Y100L1-4	2.2	63	186
		6820	454	389	Y100L1-4	2.2	63	186
		8040	473	383	Y100L1-4	2.2	63	186
		9260	487	368	Y100L1-4	2.2	63	186
		10440	494	343	Y100L1-4	2.2	63	186
18"	900	9540	676	612	Y112M-4	4	68	225
		10920	707	623	Y112M-4	4	68	225
		13285	743	619	Y132S-4	5.5	69	252
		15000	744	586	Y132S-4	5.5	69	252
		16720	745	549	Y132S-4	5.5	69	252
	800	8475	533	483	Y100L2-4	3	65	219
		9710	559	493	Y100L2-4	3	65	219
		11808	587	489	Y112M-4	4	65	225
		13340	608	483	Y112M-4	4	65	225
		14865	590	435	Y112M-4	4	65	225
	700	7420	409	370	Y100L2-4	3	63	219
		8495	428	377	Y100L2-4	3	63	219
		10330	449	374	Y100L2-4	3	63	219
		11670	450	354	Y100L2-4	3	63	219
		13000	452	333	Y100L2-4	3	63	219
20"	900	13080	830	757	Y132M-4	7.5	71	334
		14890	865	770	Y132M-4	7.5	71	334
		18230	906	764	Y160M-4	11	72	380
		20580	904	723	Y160M-4	11	72	380
		22940	905	680	Y160M-4	11	72	380
	800	11630	655	597	Y132S-4	5.5	69	322
		13320	685	609	Y132S-4	5.5	69	322
		16200	715	603	Y132M-4	7.5	70	334
		18300	714	571	Y132M-4	7.5	70	334
		20390	713	536	Y132M-4	7.5	70	334
	700	10170	501	457	Y112M-4	4	65	295
		11650	523	465	Y112M-4	4	65	295
		14170	548	462	Y132S-4	5.5	67	322
		17010	560	437	Y132S-4	5.5	67	322
		17840	546	410	Y132S-4	5.5	67	322
22"	800	16340	829	749	Y132M-4	7.5	73	384
		18710	867	763	Y132M-4	7.5	73	384
		22760	912	757	Y160M-4	11	74	430
		25700	914	717	Y160M-4	11	74	430
		28130	915	679	Y160M-4	11	74	430
	700	14290	634	573	Y132S-4	5.5	70	372
		16370	664	584	Y132S-4	5.5	70	372
		19910	698	580	Y132M-4	7.5	71	384
		22490	709	558	Y132M-4	7.5	71	384
		25070	703	515	Y132M-4	7.5	71	384
	600	12250	467	422	Y112M-4	4	67	345
		14030	489	430	Y112M-4	4	67	345
		17070	513	426	Y132S-4	5.5	68	372
		19280	515	404	Y132S-4	5.5	68	372
		21490	517	379	Y132S-4	5.5	68	372
25"	700	20350	802	726	Y160M-4	11	72	490
		23310	839	739	Y160M-4	11	72	490
		28350	882	734	Y160L-4	15	73	505
		32020	884	695	Y160L-4	15	73	505
		35040	883	657	Y160L-4	15	73	505
	600	19980	617	543	Y132M-4	7.5	69	444
		22140	631	541	Y132M-4	7.5	69	444
		24300	648	539	Y160M-4	11	70	490
		27450	649	510	Y160M-4	11	70	490
		30590	651	479	Y160M-4	11	70	490
	550	18320	518	456	Y132M-4	7.5	69	444
		20300	531	455	Y132M-4	7.5	69	444
		22283	544	453	Y132M-4	7.5	69	444
		25170	546	429	Y132M-4	7.5	69	444
		28050	548	403	Y132M-4	7.5	69	444
28"(27.5)	650	30970	928	810	Y180L-6	15	74	615
		34320	952	807	Y180L-6	15	74	615
		37670	978	804	Y200L2-6	22	75	670
		42550	984	762	Y200L2-6	22	75	670
		47420	990	714	Y200L2-6	22	75	670
	600	28600	790	690	Y160L-6	11	73	580
		31690	811	688	Y160L-6	11	73	580
		34780	833	685	Y180L-6	15	74	615
		39290	838	649	Y180L-6	15	74	615
		43790	843	608	Y180L-6	15	74	615
	550	26230	664	580	Y160L-6	11	71	580
		29060	682	578	Y160L-6	11	71	580
		31890	700	575	Y180L-6	15	72	615
		36030	704	545	Y180L-6	15	72	615
		40160	709	511	Y180L-6	15	72	615
30"	600	35080	902	790	Y200L1-6	18.5	75	700
		38870	925	788	Y200L1-6	18.5	75	700
		42660	950	785	Y200L2-6	22	77	730
		48200	954	743	Y200L2-6	22	77	730
		53710	959	697	Y200L2-6	22	77	730
	550	32150	758	664	Y180L-6	15	73	675
		35630	778	663	Y180L-6	15	73	675
		39110	798	659	Y180L-6	15	73	675
		44180	803	626	Y200L1-6	18.5	75	700
		49240	806	586	Y200L1-6	18.5	75	700
	500	29230	627	549	Y160L-6	11	71	640
		32390	643	548	Y160L-6	11	71	640
		35550	660	545	Y160L-6	11	71	640
		40160	663	517	Y180L-6	15	73	675
		44760	666	484	Y180L-6	15	73	675
