How Does an Axial Flow Fan Work in Smoke Extraction Systems?

An Axial Flow Fire Exhaust Fan is a specialized emergency ventilation device designed to purge toxic smoke, heat, and hazardous combustion gases in a controlled manner during a building fire. Operating by generating high-capacity airflow parallel to the fan shaft (axial direction), these fans deliver high-volume air movement through straight-through inline duct networks. Because the airflow direction remains linear at all times, axial fans demonstrate exceptional efficiency in heavy-duty applications requiring maximum volumetric airflow under low-to-medium static pressure. Certified for extreme thermal endurance, a high-temperature axial exhaust fan can operate continuously for over 60 minutes at 280°C (536°F) during fire events, and handle continuous high-duty daily ventilation at 100℃ without structural damage or performance degradation.

Design Engineering & Operating Principles

1. High-Efficiency Axial Airflow Mechanics: As the precision-balanced impeller rotates, ambient air is drawn directly into the inlet parallel to the axis of rotation and discharged axially at high velocity. This straight-through linear flow trajectory allows the fan to transport expansive volumes of smoke with lower kinetic energy loss, delivering optimal operational efficiency and energy savings.

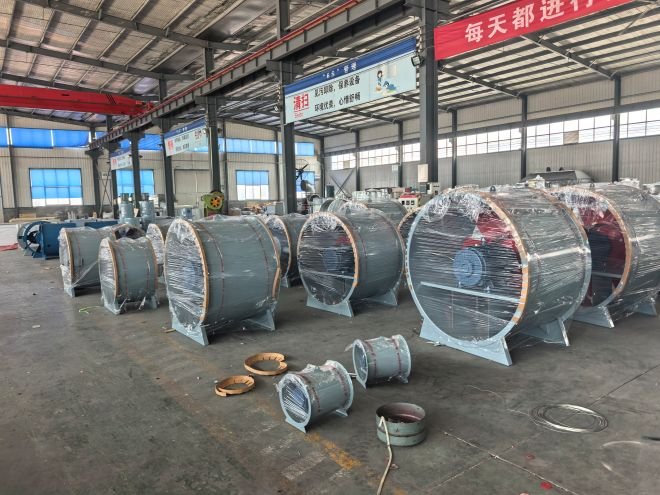

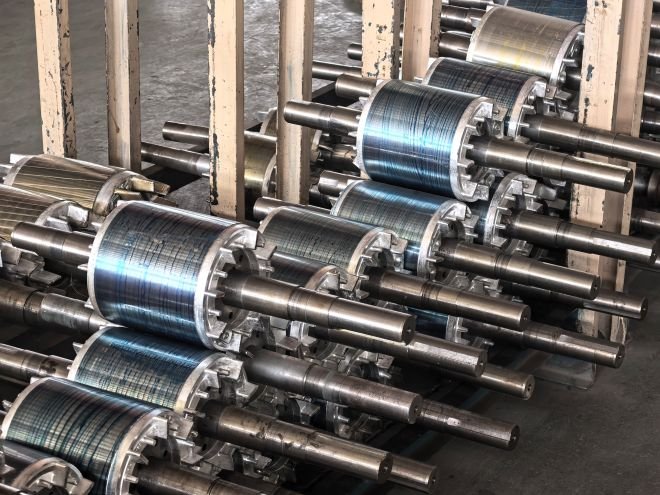

2. Heavy-Duty Construction & Aerodynamic Balancing: Structurally, the fan casing is fabricated from heavy-gauge Q235B hot-rolled steel or hot-dip galvanized steel plate, providing superior structural rigidity and long-term anti-corrosion protection against environmental weathering. The impeller blades and central hub are precisely aligned using heavy jigs and joined via heavy-duty riveting or robotic welding to eliminate blade angle tolerances. Every impeller assembly undergoes rigorous dynamic and static balancing tests to achieve the ISO 1940 G2.5 balancing grade, ensuring zero vibration and low acoustic emissions during high-speed operation.

3. Aerodynamic Flow Optimization: To maximize intake performance, the fan assembly features integrated hemispherical inlet fairings and truncated conical discharge flow straighteners. These internal air-guide components smooth out intake turbulence, reduce aerodynamic vortices, minimize acoustic shear noise, and boost overall static pressure and volumetric discharge.




In principle, an axial flow exhaust fan utilizes rotating aerofoil blades to create a positive pressure differential along the shaft axis, continually drawing in contaminated air and propelling it forward. The systemic performance and fluid efficiency primarily depend on the aerodynamic blade profile, blade pitch angle, motor power rating, and rotational speed (RPM).

Get a Quick Consultation Now

Key Applications of Industrial Axial Flow Fans

• Emergency Smoke Exhaust & Fire Safety: Rapidly exhausts thick smoke, carbon monoxide, and toxic fire fumes from basements, stairwell pressurization shafts, and escape corridors, serving as a critical passive safety component in commercial building fire protection systems.

• Building HVAC & Fresh Air Ventilation: Installed in commercial, industrial, and residential ventilation loops to promote continuous indoor air exchange, thermal dissipation, and fresh air supply.

• Equipment Room Heat Dissipation: Deployed in electrical substations, server rooms, and telecommunications plant rooms to carry away heavy heat loads generated by operating machinery, maintaining equipment within safe thermal thresholds.

• Pneumatic Granular Material Conveyance: Utilized in industrial processing plants to move light granular materials and fine particulate matter through inline ducting via high-velocity air streams.

• Industrial Fluid Agitation & Aeration: Applied in chemical and environmental processing to mix liquids with high-pressure air streams, ensuring uniform aeration and fluid blending.
